Compact Tractor Implements and Attachments
The Bobcat compact tractor packs a lot of versatility for the price. There’s always mowing to be done or material to move. Today you could be seeding; tomorrow you could be digging posts. If you want to maximize your versatility, know this: Bobcat pioneered the attachment industry. Nobody builds or designs more attachments for the compact equipment industry.
If you want to get the most out of your machine, purchase the implements and attachments you regularly use, like the mower. For those special one-time projects—like digging a trench with a backhoe—rent the it from your local Bobcat dealer. With over 550 locations in North America, there’s sure to be a source of implements, attachments, accessories, parts and service nearby.
Right now there are nine great labor-saving implements and attachments that increase the capabilities of your compact tractor. There are more on the way, and still more under development!
| |
Seeder, 72" |
| Operating Weight |
1425 lbs |
| Length |
41 in |
| Width |
84.5 in |
| Height |
33.4 in |
| Working Width |
72 in |
| Hopper Capactiy |
4.5 bushels |
| Operating Weight (Empty) |
1225 lbs |
| Operating Weight (Full) |
1425 lbs |
| |

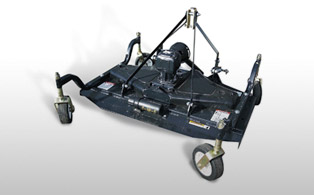

Mower - 60 in. |
Mower - 72 in. |
| Operating Weight |
544 lbs |
599 lbs |
| Length |
58.25 in |
58.25 in |
| Width |
60.38 in |
72.38 in |
| Cutting Height Range |
.75 - 5.25 in. (19 x 133 mm) |
.75 - 5.25 in. (19 - 133 mm) |
| Number of Blades |
3 |
3 |
| Mower Blade Tip Speed |
17745 ft/min |
17991 ft/min |
| Cutting Width |
58.25 in |
70.75 in |
| Min. Engine HP Required |
16 HP |
22 HP |
| Gearbox Rating |
55 HP |
55 HP |
| Tractor PTO |
540 |
540 |
| Blade Overlap |
1.5 in |
1.5 in |
| Hitch |
Category 1, Floating |
Category 1, Floating |
| Driveline Size |
Category 3 |
Category 3 |
| |
Tine Rake - 72 in. |
Tine Rake - 84 in. |
| Operating Weight |
256 lbs |
N/A |
| Oscillation |
30 degrees up or down |
30 degrees up or down |
| Rake Width |
72 in |
84 in |
| Rake Height |
15.25 in |
15.25 in |
| Rake Frame |
4 in. x 4 in. x .38 in. (102 mm x 102 mm x 10 mm) |
4 x 4 x .38 in. (102 x 102 x 10 mm) |
| Hitch |
Category 1 |
Category 1 |
| Max. 2-Wheel Drive Tractor HP |
35 HP |
35 HP |
| Max. Front Wheel Assist Tractor HP |
30 HP |
30 HP |
| Kingpin Diameter |
2.88 in. (73 mm) tubing |
2.88 in. (73 mm) tubing |
| Pivot (Forward) |
15, 30, 45 degrees |
15, 30, 45 degrees |
| Pivot (Reverse) |
30 degrees |
30 degrees |
| Tine Size |
.31 in. x 1 in. (8 mm x 25 mm) |
.31 x 1 in. (8 x 25 mm) |
| |

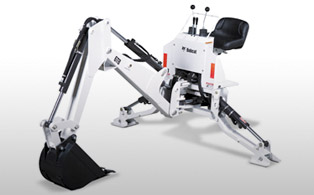

6TB Backhoe |
| Operating Weight |
1032 lbs |
| Maximum Dig Depth |
78 in |
| Maximum Reach at Ground Level |
107 in |
| Max Reach |
107 in |
| Dig Force-Bucket |
2875 lbs |
| Dig Force-Dipper |
1744 lbs |
| Bolt-On X-Change |
NA |
| Swing Angle |
179 deg |
| Dig Depth |
6.5 ft |
| |
3-Point Auger |
| Hitch Pins |
Category 1 |
| Yoke Tubing |
2.88 in |
| Boom Tubing |
2.88 in |
| Overall Auger Length |
42 in |
| Cat. 2 Driveline (Shielded) |
Standard |
| 2" Output Shaft (Shielded) |
Standard |
| Gearbox (Ratio/Weight) |
3.18:1/84 lbs. (38 kg) |
| |
Box Blade - 48 in. |
Box Blade - 60 in. |
Box Blade - 72 in. |
| Operating Weight |
262 lbs |
446 lbs |
505 lbs |
| Length |
35 in |
35 in |
35 in |
| Width |
48.63 in |
60.63 in |
72.63 in |
| Height |
34 in |
35.5 in |
35.5 in |
| Number of Shanks |
5 |
5 |
6 |
| Weight w/Scarifier |
262 lbs |
446 lbs |
505 lbs |
| Working Width |
48 in |
60 in |
72 in |
| Height of Moldboard |
14 in |
17 in |
17 in |
| Box Depth |
21.31 in |
25 in |
25 in |
| Shank Penetration |
0 - 3 in. (0 - 76 mm) |
0 - 3 in. (0 - 76 mm) |
0 - 3 in. (0 - 76 mm) |
| Shank Size |
.75 x 2.5 in. (19 x 64 mm) |
.75 x 2.5 in. (19 x 64 mm) |
.75 x 2.5 in. (19 x 64 mm) |
| Main Frame |
4 x 4 x .25 in. wall (102 x 102 x 6 mm) |
4 x 4 x .25 in. wall (102 x 102 x 6 mm) |
4 x 4 x .25 in. wall (102 x 102 x 6 mm) |
| Max. Engine HP Rating |
40 HP |
40 HP |
40 HP |
| Hitch Type |
Category 1 |
Category 1 |
Category 1 |
| Lower Hitch |
Double Lug |
Double Lug |
Double Lug |
| Cutting Edge |
.38 x 3 in. (10 x 76 mm) |
.5 x 6 in. (13 x 152 mm) |
.5 x 6 in. (13 x 152 mm) |
| Number of Blades |
2 |
2 |
2 |
| |
Soil Cultivator, 62" |
Soil Cultivator, 78" |
| Operating Weight |
839 lbs |
871 lbs |
| Length |
72 in |
72 in |
| Width |
62 in |
78 in |
| Tool Bar Weight |
134 lbs |
166 lbs |
| Number of "S" Tines |
9 |
11 |
Front-End Loader
Handle materials with ease.
Specifications
| |
6TL |
7TL |
| Lift Height |
73.5 in. |
85 in. |
Lift capacity – 500 mm in front of bucket pin (with proper rear ballast and rated tires) |
830 lb. |
1225 lb. |
| Detachable |
Yes |
Yes |
| Compatible Models |
CT120 |
CT225, CT230 |
