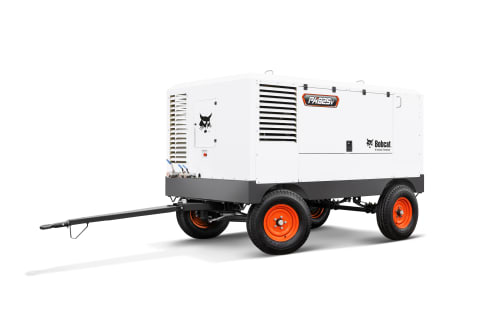

Large Air Compressors
Large Air Compressors
Bobcat's Large Air Compressors combine robust power with a compact design.
Equipment
Loaders
Mini Excavators
Tractors
Utility Products
Mowers
Warehouse Equipment
Equipment
Portable Power
Attachments
Parts & Service
Buying Tools
- Home
- Equipment
- Air Compressors
- Small Air Compressors
- Small Air Compressors 185–250 CFM
Small Air Compressors 185–250 CFM
Small Air Compressors 185–250 CFM
Our 185 to 250 CFM (5.2–7.1 m³/min) Small Air Compressors are powered by dependable, emission-compliant engines, eliminating the need for extra exhaust aftertreatment. They feature a bunded base with optional drains for effortless and minimal upkeep. These compressors are versatile assets for cable blowing, road marking, moling applications, and more.
Specifications
Compare
Key Specifications
PA185
PA250V
Free Air Delivery
5.2 m3/min
5.9 m3/min
Pressure
6.90 bar
6.90 bar
Engine
Kubota
Kubota
Dimensions
PA185
PA250V
Fixed towbar length
3485 mm
3490 mm
Lenght
-
-
Width
1740 mm
1740 mm
Height
1717 mm
1715 mm
Lenght on shipping support
2251 mm
2251 mm
Width on shipping support
1252 mm
-
Height on shipping support
1430 mm
-
General Data
PA185
PA250V
Emission Compliance
Tier 2
Tier 2
Free Air Delivery
5.2 m3/min
5.9 m3/min
Rated Operating Pressure
6.90 bar
6.90 bar
Free Air Delivery - High Pressure mode
-
7.10 m3
Rated Operating Pressure - High Pressure mode
-
10.30 bar
Engine
PA185
PA250V
Make
Kubota
Kubota
Model
V2403MDI-T
V3300DI-T
Number of Cylinders
4
4
Full load speed
2550 RPM
2600/2200 RPM
Power
46.5 kW
46.5 kW
Electrical
12 V
12 V
Cooling
Water
Water
Fuel Tank capacity
131 L
132 L
Weights
PA185
PA250V
Weight (net) fixed/adjustable
960
1055
Weight (working) fixed/adjustable
1070
1166
Weight on shipping support (net)
-
958 kg
Weight on shipping support (working)
-
1068 kg
Standard Features
PA185
PA250V
Central lifting point
yes
yes
"Push after warm-up" button
yes
yes
Fuel/water separator
yes
yes
High Ambient
yes
yes
Polymer Canopy
yes
yes
Spark Arrestor
yes
yes
Toolbox
yes
yes
4 pins
yes
yes
Fixed height unbraked r/gear 3" in eye
yes
yes
Safety chain on drawbar
yes
yes
Standard non-metallic fan
no
yes
Dual mode machine
no
yes
Jockey Wheel
no
yes
Overspeed valve
no
yes
