S70 Skid-Steer Loader

S70 Skid-Steer Loader

The compact Bobcat S70 skid-steer loader is small enough to get into the tight spots, yet tough enough to get you out. This agile little workhorse is only 1.8m tall and 0.9m wide — the ideal size for scooting through narrow doorways, corridors, aisles, alleys and gates, and for working under low ceilings, and it can even take the elevator to transfer between floors. With various attachments, S70 is the strongest in applications of construction, landscaping, etc.

S70 Features

S70 Specifications

Compare

Key Specifications

Horsepower
23.5 hp
Rated Operating Capacity (ISO)
362 kg
Operating Weight
1312 kg

Key Specifications

Horsepower
23.5 hp
Rated Operating Capacity (ISO)
362 kg
Operating Weight
1312 kg

Model

Emissions Tier (EPA)
Tier 4
Loader Series
K-Series
Rated Operating Capacity (ROC) (ISO 14397-1)
362 kg
Tipping Load (ISO 14397-1)
724 kg
Height to Hinge Pin
2399 mm
Lift Arm Path
Radius

Size and Speed

Operating Weight
1312 kg
Bucket Width
914 mm
Cab Height
1814 mm
Travel Speed – Low Range
10.1 km/h
Travel Speed – High Range (Optional 2-Speed Travel)
'-

Engine

Horsepower
23.5 hp
Type
Natural Aspirated
Fuel Tank Capacity
24.6 l

Tires

Bobcat Standard Duty
Standard
Bobcat Heavy Duty
'-
Bobcat Severe Duty
'-
Bobcat Super Float
'-

Control Options

Bobcat Standard (Foot Pedals/Steering Levers)
Standard
Selectable Joystick Control (SJC)
'-
Radio Remote Control (SJC Required)
'-

Machine Features

Air Ride Seat
'-
Back-up Alarm & Horn
Standard
Bobcat Interlock Control System (BICSTM)
'-
Cab with Heat
Optional
Cab with Heat & Air Conditioning
'-
Deluxe Instrumentation (Includes Keyless Start)
'-
Hydraulic Bucket Positioning
'-
Front and Rear Work Lights
Standard
Radio
'-
Ride Control
'-
ROPS/FOPS Approved Cab Structure
Standard
Sound Reduction Package
'-
2-Speed
'-

Features for Attachments

Attachment Control Kit
'-
Bob-Tach Mounting System
Standard
Power Bob-Tach System
'-
Fingertip Auxiliary Hydraulics Control
'-
Hydraulic System Pressure
207 Bar
Hydraulic Standard Flow
37.1 l/min
Hydraulic High Flow (Optional)
'-
"Pressure Release Hydraulic Quick Couplers (Drain port)"
Standard

Similar Machines

S16 Skid-Steer Loader S16 Skid-Steer Loader

S16 Skid-Steer Loader

The Bobcat® S16 is the right size with enought lift capacity to help you in small spaces.

Horsepower
49.6 hp
Rated Operating Capacity (ISO)
744 kg
Operating Weight
2573 kg

S18 Plus Skid-Steer Loader S18 Plus Skid-Steer Loader

S18 Plus Skid-Steer Loader

The Bobcat S18 Premium Edition is an upgraded version of the S18.

Horsepower
49.6 hp
Rated Operating Capacity (ISO)
894 kg
Operating Weight
2673 kg

S510 Skid-Steer Loader S510 Skid-Steer Loader

S510 Skid-Steer Loader

The Bobcat® S510 skid-steer loader is the first model in the popular 500 frame size - a popular choice for earth-moving work.

Horsepower
55 hp
Rated Operating Capacity (ISO)
851 kg
Operating Weight
1703 kg

S530 Skid-Steer Loader Bobcat S530 Skid-Steer Loader

S530 Skid-Steer Loader

It might be small, but the popular Bobcat S530 uses new high flow hydraulics to ensure no task is out of reach.

Horsepower
48.9 hp
Rated Operating Capacity (ISO)
869 kg
Operating Weight
2815 kg

S550 Skid-Steer Loader S550 Skid-Steer Loader

S550 Skid-Steer Loader

If you’re looking for a powerful radius lift path loader in the 500 frame size, choose the Bobcat® S550.

Horsepower
68.9 hp
Rated Operating Capacity (ISO)
926 kg
Operating Weight
2995 kg

S590 Skid-Steer Loader S590 Skid-Steer Loader

S590 Skid-Steer Loader

Reach higher with more power! The Bobcat® S590 skid-steer loader is the highest-lifting, most powerful model in the popular 500 frame size.

Horsepower
68.9 hp
Rated Operating Capacity (ISO)
953 kg
Operating Weight
3069 kg

S70 Skid-Steer Loader S70 Skid-Steer Loader

S70 Skid-Steer Loader

The compact Bobcat S70 skid-steer loader is small enough to get into the tight spots, yet tough enough to get you out.

Horsepower
23.5 hp
Rated Operating Capacity (ISO)
362 kg
Operating Weight
1312 kg

S76 Skid-Steer Loader S76 Skid-Steer Loader

S76 Skid-Steer Loader

The S76 skid-steer loader is designed to help you accomplish more with one machine.

Horsepower
74 hp
Rated Operating Capacity (ISO)
1338 kg
Operating Weight
3907 kg

S86 Skid-Steer Loader S86 Skid-Steer Loader

S86 Skid-Steer Loader

The S86 gives you unparalleled performance and lift capabilities.

Horsepower
105 hp
Rated Operating Capacity (ISO)
1587 kg
Operating Weight
4412 kg

Popular Attachments

View All
Angle Broom - 52" Angle broom

Angle Broom - 52"

Dirt, dried mud, light snow and other debris are quickly and efficiently swept away with this hydraulically driven attachment.
Angle Broom - 64" Angle Broom

Angle Broom - 64"

Dirt, dried mud, light snow and other debris are quickly and efficiently swept away with this hydraulically driven attachment.
Deluxe Landplane - 72" Landplane

Deluxe Landplane - 72"

A landscaping must.
Drop Hammer Drop Hammer

Drop Hammer

The drop hammer is intended for demolition of large surface areas such as concrete roads and driveways.
Dumping Hopper - Model 10 Dumping Hopper

Dumping Hopper - Model 10

Park it, load it and dump it.
Grapple - Utility, 32" Grapple, Utility

Grapple - Utility, 32"

Lift, and move loose materials such as manure, bedding, and hay.
Nitrogen Breaker - NB140 Nitrogen Breaker

Nitrogen Breaker - NB140

The nitrogen breaker requires minimal maintenance and reduces wear on your carrier.
Packer Wheel Packer Wheel

Packer Wheel

Achieve compaction without the need for auxiliary hydraulics.
Scraper Scraper

Scraper

Use to remove stubborn, packed-on mud, snow and ice from driveways, sidewalks, parking lots, bike paths, wherever build-up occurs.
Seeder Seeder

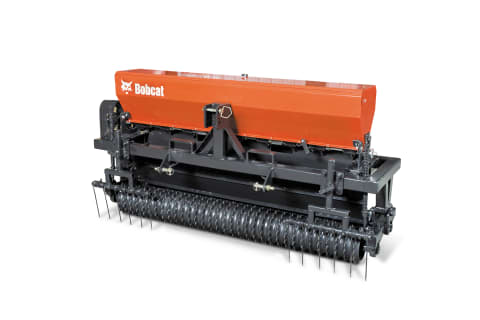

Seeder

Acurate seed placement and adjustable metering.
Soil Conditioner - Manual, 72" Soil Conditioner

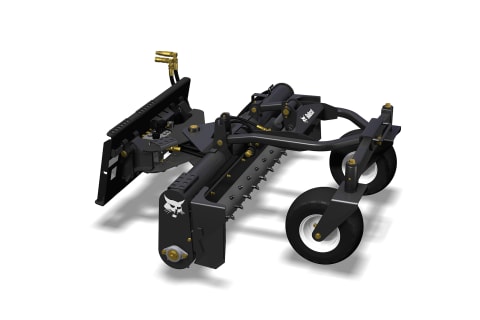

Soil Conditioner - Manual, 72"
