BWP17S-7
Walkie Pantograph Reach Stacker

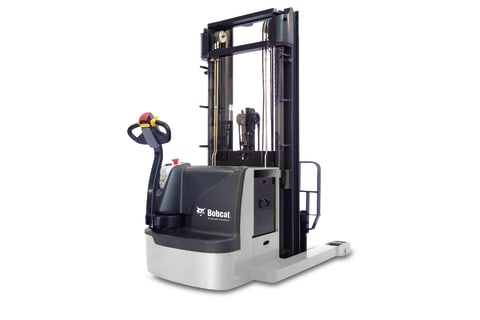

BWP17S-7 Walkie Pantograph Reach Stacker
- 3,300-pound capacity
- 24-volt AC power
- 19.7-inch reach stroke
- Electromagnetic service brake
BWP17S-7 Overview
- 156-inch triple-stage mast
- Tilting fork carriage
- Pantograph reach mechanism
- Ergonomic control handle
- Low-speed brake override
BWP17S-7 Key Specifications
BWP17S-7
Machine Rated Capacity
3,300 lb
Voltage
24 V
Engine
BWP17S-7
Performance
BWP17S-7
Machine Rated Capacity
3,300 lb
Load Center
19.7 in
Travel Speed - Loaded
3.2 mph
Travel Speed - Unloaded
3.5 mph
Dimensions
BWP17S-7
Length
92.1 in
Wheelbase
56.9 in
Power
BWP17S-7
Voltage
24 V
BWP17S-7 Key Specifications
BWP17S-7
Machine Rated Capacity
3,300 lb
Voltage
24 V
Engine
BWP17S-7
Performance
BWP17S-7
Machine Rated Capacity
3,300 lb
Load Center
19.7 in
Travel Speed - Loaded
3.2 mph
Travel Speed - Unloaded
3.5 mph
Dimensions
BWP17S-7
Length
92.1 in
Wheelbase
56.9 in
Power
BWP17S-7
Voltage
24 V
BWP17S-7 Features & Benefits
Operational Enhancements
2
Low Speed/Brake Override Switch
Allows for ‘creep-speed’ operation while the control handle arm is in the upright position. Increases mobility in confined spaces.
Plexiglass Guard
Full plexiglass mast guard restricts materials from entering operator area from the front.
Simplified Serviceability
6
Long-Lasting Curtis AC Controllers
AC controllers provide an unbeatable combination of power, performance, and functionality. They are both durable and reliable.
Poly Drive Tire
The tough polyurethane drive tire offers longer life and consumes less energy than conventional rubber tires.
Battery Side Roll-In/Roll-Out
The battery roller system comes as a standard feature. It saves time and effort during battery change-outs.
Heavy-Duty Quick-Adjust Casters
Springless, quick-adjusting, heavy-duty casters increase load handling stability, reduce maintenance time, and resist damage.
Deep-Cycle Batteries
Deep-cycle batteries provide a steady amount of current over a long period of time, requiring less-frequent maintenance and fewer charges compared to other batteries.
Brushless Motor Design
The maintenance-free brushless design provides more productivity and increased reliability.
Enhanced Productivity
4
Ergonomic Multi-Function Control Handle
Provides smooth proportional control of all functions. The ability to operate multiple functions simultaneously increases overall productivity, helps you do more!
Full Rotary Control Handle
Twist/grip design minimizes wrist stress, allows for precise lifting/lowering, travel control, and horn functions from either side of the vehicle.
Pantograph Reach Mechanism
Allows the reaching mechanism to extend farther out or retract back to the mast, providing a much tighter turn radius vs. counterbalanced lifts.
Tight Turning Radius
A shorter wheel base allows the truck to be more maneuverable in confined spaces.
Durable Reliability
1
AC Drive System, Motors & Controller
- An industry-proven AC drive system, motors and controller allows for precise handling.
- Provides smooth responsive acceleration and lifting for greater reliability and productivity.
