T590 Compact Track Loader

T590 Compact Track Loader

If space is limited or you're in rough conditions but you need high lift capacity, the Bobcat T590 Compact Track Loader is your perfect solution. It has the highest lifting height in the 500 series: ideal for loading and unloading bricks, blocks and other palletized materials.

T590 Specifications

Compare

Key Specifications

Tipping load
2773 kg
Engine power
50.8 kW
Operating weight
3664 kg
Lift height
3 m
ROC
971 kg

Key Specifications

Tipping load
2773 kg
Engine power
50.8 kW
Operating weight
3664 kg
Lift height
3 m
ROC
971 kg

Performance

Tipping load (ISO 14397-1)
2773.00 kg
Rated operating capacity (ISO 14397–1)
971.00 kg
Pump capacity
64.70 L/min
Pump capacity (with high flow option)
101.10 L/min
System relief at quick couplers
23.8-24.5 MPa
Max. travel speed (high range – optional)
16.00 km/h

Engine

Make / Model
Bobcat 2.4L, 97/68 EC
Compliancy
Stage V
Fuel
Diesel
Cooling
Liquid
Power at 2600 RPM (ISO 14396)
50.70 kW
Torque at 1800 RPM (ISO 14396)
252.30 Nm
Number of cylinders
4
Displacement
2392.00 cm3
Fuel tank
138.20 L

Weights

Operating weight
3664.00 kg
Shipping weight
3283.00 kg
Ground pressure
40.00 kPa

Dimensions

Operating height
3901.00 mm
Height with operator cab
1972.00 mm
Angle of departure
27.80 °
Ground clearance
188.00 mm
Ground contact length
1402.00 mm
Length without attachment
2657.00 mm
Length with standard bucket
3378.00 mm
Rollback at ground position
30.00 °
Dump height with standard bucket
2319.00 mm
Height to bucket hinge pin
3023.00 mm
Dump reach at maximum height
887.00 mm
Dump angle at maximum height
42.00 °
Rollback fully raised at maximum height
97.00 °
Bucket width, 68–inch
1727.00 mm
Bucket width, 74–inch
1880.00 mm
Turning radius with standard bucket
2032.00 mm
Width over tracks, 320 mm tracks
1702.00 mm
Width over tracks, 400 mm tracks
1782.00 mm

Controls

Vehicle steering
Hand Levers or optional Selectable Joystick Controls (SJC)
Loader hydraulics tilt and lift
Foot Pedals or optional Selectable Joystick Controls (SJC)
Front auxiliary (standard)
Proporcional switch on Hand Levers or optional Selectable Joystick Controls (SJC)

Drive System

Transmission
Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors

Standard Features

Bobcat Interlock Control System (BICS)
yes
Parking brake
yes
Deluxe operator cab* Includes interior cab foam, side, top and rear windows, Deluxe wire harness, dome light and electrical power port
yes
Noise reduction kit
yes
Operating lights, front and rear
yes
Deluxe instrument panel
yes
Keyless start with password capability
yes
Suspension seat
yes
Seat belt
yes
Seat bar
yes
Hydraulic bucket positioning (including ON/OFF switch)
yes
Tracks — rubber — 320 mm
yes
Spark Arrester
yes
Bob-Tach™ frame
yes
Cushioned lift and tilt cylinders
yes
Lift arm support
yes
Engine/hydraulics system shutdown
yes
Automatically activated glow plugs
yes
Electrically activated proportional front auxiliary hydraulics
yes
Auxiliary hydraulics: variable flow/maximum flow
yes
Machine IQ (telematic)
yes
Manual
yes
CE certification
yes
Warranty: 24 months or 2000 hours (whichever occurs first)
yes

Options

Deluxe pressurized cab with heating
yes
Deluxe pressurized cab with HVAC
yes
Selectable Joystick Controls (SJC - R/C Ready)
yes
Tracks - rubber - 400 mm
yes
Cloth Suspension Seat
yes
High-flow auxiliary hydraulics
yes
7-pin attachment control
yes
2 Speed
yes
Power Bob-Tach™
yes
Back-up alarm
yes
Radio
yes
Beacon
yes
Work Lights LED
yes
Road Option
yes
Automatic Ride Control
yes
Automatic Reversing Fan
yes
Custom paint color (min order of 5 units)
yes
Cab enclosure kit
yes
Special applications front door kit
yes
200 lbs (74.4 kg) counterweight kit
yes
Front axle counterweight kit
yes
Fuel cap locking kit
yes
Deluxe instrument panel
yes
Replacement Bob-Tach™
yes
Fresh air heater kit
yes
Front door kit
yes
Door sensor kit
yes
Plumbing kit for fresh air heater
yes
Back up alarm kit
yes
FOPS kit **
yes
Single-point lift kit
yes
Power Bob-Tach™ kit
yes
Operator cab, CE, enclosure kit
yes
Four-point lift kit
yes
Rear auxiliary hydraulic kit
yes
Engine block heater kit
yes
Road kit
yes
Bucket positioning kit
yes
Keyless kit
yes
Rear window wiper kit
yes
14-pin attachment control kit
yes
4-Way flasher kit
yes
80 mm Suspension seat kit
yes
Cup holder kit
yes
Headlight guard kit
yes
Muffler guard kit
yes
Tail light guard kit
yes

Attachments

Auger Accessories
yes
Augers
yes
Backhoes
yes
Bale Forks
yes
Box Blades
yes
Breaker Accessories
yes
Breakers
yes
Brush Saws
yes
Brushcat™ Rotary Cutters
yes
Combination Buckets
yes
Concrete Mixers
yes
Concrete Pumps
yes
Construction / Industrial Buckets
yes
Diggers
yes
Dozer Blades
yes
Drop Hammers
yes
Dumping Hoppers
yes
Flail Cutters
yes
Forestry Cutters
yes
Graders
yes
Grapples, Industrial
yes
Landplanes
yes
Landscape Rakes
yes
Laser Equipment
yes
Low Profile Buckets
yes
Miscellaneous
yes
Mixing Buckets
yes
Mowers
yes
Pallet Fork Accessories
yes
Pallet Forks, Hydraulic
yes
Planer Accessories
yes
Planers
yes
Rear Stabilizers
yes
Remote Control
yes
Root Grapples
yes
Rotary Grinders
yes
Sand Cleaners
yes
Scarifiers
yes
Scrapers
yes
Seeders
yes
Skeleton Buckets
yes
Snow Blades
yes
Snow Pushers
yes
Snow V-Blades
yes
Sod Layers
yes
Soil Conditioners
yes
Spreader
yes
Spreaders
yes
Stump Grinders
yes
Sweepers
yes
Tillers
yes
Tilt-Tatch
yes
Tree Transplanters
yes
Trench Compactors
yes
Trenchers
yes
Utility Forks
yes
Utility Frames
yes
Vibratory Rollers
yes
Wheel Saws
yes
Wood Chippers
yes

Environmental

Operator LpA (98/37 & 474-1)
82.00 dB(A)
Noise level LWA (EU Directive 2000/14/EC)
101.00 dB(A)
Whole body vibration (ISO 2631–1)
0.84 ms2
Hand-arm vibration (ISO 5349–1)
2.29 ms2

T590 Features

Popular Attachments

View All
Angle Broom Angle broom

Angle Broom

Dirt, dried mud, light snow and other debris are quickly and efficiently swept away with this hydraulically driven attachment.
Auger Auger

Auger

Speed and perfect vertical accuracy are what you get with this high-torque, heavy-duty hydraulic auger.
Bale Fork Bale Fork

Bale Fork

The pair of small diameter forks offer benefits over a single fork.
Box Blade Box Blade

Box Blade

The laser box blade is designed for precise grading and has a grade accuracy of 6 mm.
Box Blade, HD Box Blade, HD

Box Blade, HD

Save time and money while producing a more accurate finish grade with the Bobcat HD box blade.
Breaker Breaker

Breaker

Bobcat breakers offer high performance, low maintenance, and are easy to use.
Brush Saw Brush Saw

Brush Saw

The Bobcat. brush saw attachment is a quick, convenient way to remove unwanted brush.
Brushcat™ Rotary Cutter Brushcat Rotary Cutter

Brushcat™ Rotary Cutter

Handle tough brush clearing and landscaping applications easily with the Brushcat™ rotary cutter.
Bucket (CI), Construction / Industrial Bucket (CI), Construction / Industrial

Bucket (CI), Construction / Industrial

The strongest of all Bobcat buckets.
Bucket (LP), Low Profile Bucket (LP), Low Profile

Bucket (LP), Low Profile

These buckets have a longer bottom than the construction/industrial style.
Bucket, Combination Bucket, Combination

Bucket, Combination

Dozing, grappling, levelling, digging, loading and dumping.
Bucket, Fertiliser And Grain Bucket, Fertiliser and Grain

Bucket, Fertiliser And Grain

Fertiliser buckets have large capacities and more roll-back range.
Bucket, Skeleton Bucket, Skeleton

Bucket, Skeleton

Excellent for separating unwanted objects, such as rocks and other debris, from work areas while leaving finer material behind.
Bucket, Snow And Light Material Bucket, Snow and Light Material

Bucket, Snow And Light Material

Snow is relatively light compared to soil or gravel, and we have increased the bucket size to make such type of work a breeze.
Concrete Mixer Concrete Mixer

Concrete Mixer

Turn your Bobcat® loader into an efficient concrete mixer with this rugged, cost-effective attachment.
Concrete Pump Concrete Pump

Concrete Pump

This powerful attachment puts concrete right where you want it and is built to last.
Digger Digger

Digger

The digger is ideal for nurseries and landscaping applications.
Dozer Blade Dozer Blade

Dozer Blade

Turn your loader into a mini crawler with the dozer blade.
Drop Hammer Drop Hammer

Drop Hammer

The drop hammer is intended for demolition of large surface areas such as concrete roads and driveways.
Dumping Hopper Dumping Hopper

Dumping Hopper

Park it, load it and dump it.
Flail Cutter Flail Cutter

Flail Cutter

The flail cutter is ideal for cutting overgrowth on construction sites as well as alongside roads and sidewalks.
Forestry Cutter Forestry Cutter

Forestry Cutter

Take trees and underbrush from unsightly overgrowth to mulch in minutes with the Bobcat® forestry cutter.
Grade Lasers Grade Lasers

Grade Lasers

Bobcat's Grade Laser is a highly precise and dependable system for leveling, grading or jobs that require vertical alignment.
Grader Grader

Grader

Turn your Bobcat® loader into a high-performance grading machine.
Grapple, Farm – Utility On Bucket Grapple, Farm - Utility on Bucket

Grapple, Farm – Utility On Bucket

This is the easy way to handle loose hay, bedding and manure on the farm and other sites.
Grapple, Farm – Utility On Fork Grapple, Farm - Utility on Fork

Grapple, Farm – Utility On Fork

This is the easy way to handle loose hay, bedding and manure on the farm and other sites.
Grapple, Industrial Grapple, Industrial

Grapple, Industrial

Built tough for reliability and endurance, the industrial bucket and fork with grapple will easily handle scrap, waste, brush and other hard-to-manage
Grapple, Root Grapple, Root

Grapple, Root

Built tough for reliability and endurance, the root grapple easily handle scrap, waste, brush and other hard-to-manage materials.
Landscape Rake Landscape Rake

Landscape Rake

The perfect landscape finishing tool.
Laser Equipment Laser Equipment

Laser Equipment

The laser equipment offers the most innovative features to help you get to grade faster with increased accuracy.
Mixing Bucket Mixing Bucket

Mixing Bucket

This rugged, cost-effective attachment lets you mix, transport and pour concrete much more quickly than a stand alone mixer.
Mower Mower

Mower

Ideal for rough-cut applications, including road ditch right-of-way, golf course roughs and large acreage mowing.
Pallet Forks Pallet Forks

Pallet Forks

Perfect for handling pallets, even in tight spaces and hard-to-reach areas like narrow aisles.
Pallet Forks, Hydraulic Pallet Forks, Hydraulic

Pallet Forks, Hydraulic

A powerful hydraulic pallet fork for lifting and maneouvering even heavy loads with ease.
Planer Planer

Planer

Equipped with direct-drive, high-torque hydraulic motor.
Planer, Self-Levelling Planer, Self-Levelling

Planer, Self-Levelling

Equipped with direct-drive, high-torque hydraulic motor.
Pressure Washer Pressure Washer

Pressure Washer

Excels at cleaning or sanitizing streets, removing graffiti and even at railroad, bridge or tunnel maintenance.
Rear Stabilizers Rear Stabilizers

Rear Stabilizers

Increase your auger, backhoe or tree spade performance in a wide range of jobs with a set of frame-mounted rear stabilizers.
Remote Control Remote Control

Remote Control

Control your Bobcat loader without the need to be in the cab.
Rotary Grinder Rotary Grinder

Rotary Grinder

The rotary grinder is a powerful attachment that consists of a double drum, driven by a completely integrated high-torque hydraulic motor.
Salt & Sand Spreader Salt & Sand Spreader

Salt & Sand Spreader

Ideal for spreading in confined areas such as parking lots and pedestrian zones where larger equipment cannot be used.
Sand Cleaner Sand Cleaner

Sand Cleaner

Keep the beach clean and quickly remove any litter by using the Bobcat Sand Cleaner.
Scarifier Scarifier

Scarifier

Has the power to rip apart hard packed ground and prepare for digging or landscaping.
Scraper Scraper

Scraper

Use to remove stubborn, packed-on mud, snow and ice from driveways, sidewalks, parking lots, bike paths, wherever build-up occurs.
Seeder Seeder

Seeder

Acurate seed placement and adjustable metering.
Snow Blade Snow Blade

Snow Blade

An excellent way to quickly remove light or moderate snow from sidewalks and driveways.
Snow Blower Snow Blower

Snow Blower

Extend your Bobcat® loader work into winter with a hydraulically driven snowblower.
Snow Pusher Snow Pusher

Snow Pusher

Push snow with speed and efficiency from parking lots, driveways and building sites using the Bobcat® Snow Pusher attachment.
Snow V-Blade Snow V-Blade

Snow V-Blade

This versatile, hydraulically operated attachment offers five different blade configurations to help operators move snow fast.
Sod Layer Sod Layer

Sod Layer

Whether laying sod is a normal part of your day-to-day operation or just an occasional chore, the Bobcat® sod layer attachment can make the job go mor
Soil And Asphalt Spreader Soil and Asphalt Spreader

Soil And Asphalt Spreader

Engineered to lay asphalt and other material in order to create sidewalks, widen existing roads or fill trenches fast.
Soil Conditioner Soil Conditioner

Soil Conditioner

A versatile, cost-effective landscaping attachment.
Stump Grinder Stump Grinder

Stump Grinder

Grind tree stumps into mulch with the powerful action of the stump grinder attachment.
Sweeper Sweeper

Sweeper

The Bobcat sweeper can sweep and collect dirt or other debris in both forward and reverse.
Sweeper, HD Open Frame Sweeper, HD Open Frame

Sweeper, HD Open Frame

The Bobcat open design sweeper can sweep and collect dirt or other debris in heavy duty applications.
Sweeper, Multipurpose Sweeper, Multipurpose

Sweeper, Multipurpose

The Bobcat multipurpose sweeper can sweep and collect dirt or other debris.
Tiller Tiller

Tiller

A great landscaping attachment.
Tilt-Tatch Tilt-Tatch™

Tilt-Tatch

Tilt-TatchTM increases the versatility of Bobcat® buckets, pallet forks and other attachments.
Tree Transplanter, Convertible Tree Transplanter, Convertible

Tree Transplanter, Convertible

Turn your loader into a tree harvesting unit with this rugged, dependable, attachment that is simple to operate and easy to manoeuvre.
Trench Compactor Trench Compactor

Trench Compactor

Packs soil after power, water lines or other shallow trenches have been installed in a yard, golf course, park, etc.
Trencher Trencher

Trencher

This versatile tool can be used for a variety of jobs ranging from light to high-production trenching.
Utility Fork Utility Fork

Utility Fork

Handle materials easier and move materials faster with the utility fork attachment.
Utility Frame Utility Frame

Utility Frame

Weld this accessory to non Bobcat® attachments to convert to Bob-TachTM mount.
Vibratory Roller Vibratory Roller

Vibratory Roller

The ideal compacting tool for flatwork, trenches and asphalt patching jobs.
Water Kit Water Kit

Water Kit

When using attachments such as a vibratory roller, angle broom or sweeper, add the water kit to help reduce dust.
Wheel Saw Wheel Saw

Wheel Saw

This rugged, powerful saw cuts through asphalt, concrete, frozen ground or wire mesh with more precision than air or hydraulic breakers.
Wood Chipper Wood Chipper

Wood Chipper

The Bobcat® wood chipper attachment grinds branches, trees and limbs, reducing branch volume 10 to 1.

Similar Machines

MT100 Mini Track Loader Bobcat MT100 Mini-Track Loader

MT100 Mini Track Loader

Save time taking on the biggest jobs even in the tightest areas when you try on the Bobcat MT100 mini track loader.

Tipping load
1290 kg
Engine power
17.5 kW
Operating weight
1538 kg

T450 Compact Track Loader T450 Compact Tracked Loader

T450 Compact Track Loader

The Bobcat T450 is known for its ability to maneuver the smallest job sites while offering impressive power for mid-range jobs.

Tipping load
2049 kg
Engine power
41 kW
Operating weight
2961 kg

T590 Compact Track Loader T590 Compact Tracked Loader

T590 Compact Track Loader

You don't have a lot of space? That won't stop the Bobcat T590 from giving you the highest lifting height in the 500 series.

Tipping load
2773 kg
Engine power
50.8 kW
Operating weight
3664 kg

T66 Compact Track Loader T66 Compact Tracked Loader

T66 Compact Track Loader

With an inline engine, direct-drive system, and 1086 kg operating capacity, the Bobcat T66 can handle anything you throw at it.

Tipping load
3175 kg
Engine power
54.5 kW
Operating weight
4296 kg

T76 Compact Track Loader T76 Compact Tracked Loader

T76 Compact Track Loader

Complete bigger jobs in less time and more comfort with the all-terrain compact track T76 vertical-lift path loader.

Tipping load
4050 kg
Engine power
54.5 kW
Operating weight
5051 kg

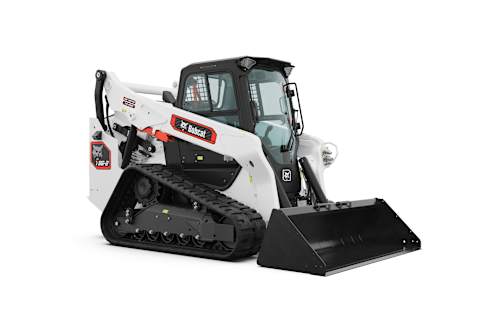

T86 Compact Track Loader T86 Compact Track Loader

T86 Compact Track Loader

Our highest-performing track loader with Super Flow.

Tipping load
5087 kg
Engine power
78.7 kW
Operating weight
5643 kg

Related Content

View All
New Bobcat products to be shown for first time at Plantworx New Bobcat products to be shown for first time at Plantworx

New Bobcat products to be shown for first time at Plantworx

31 May 2023

In both the Static and Demonstration areas of the Bobcat stand at the Plantworx 2023 Exhibition, the company will be presenting a host of new products for the first time at the show.
New Bobcat Machine IQ Telematics System for Customers New Bobcat Machine IQ Telematics System for Customers

New Bobcat Machine IQ Telematics System for Customers

11 April 2023

Bobcat has launched the company’s new Machine IQ telematics system, connecting customers to their machines’ information at any time, anywhere and from any device.
Bobcat track loader with sand cleaner attachment on most famous Sicilian Beach Bobcat track loader with sand cleaner attachment on most famous Sicilian Beach

Bobcat track loader with sand cleaner attachment on most famous Sicilian Beach

21 December 2022

The Bobcat SC200 sand cleaner, mounted on the new Bobcat T76 R-Series tracked loader, was an incomparable combination for cleaning one of the most beautiful and widest coasts in Italy.
Bobcat Machines at Archaeological Excavations Bobcat Machines at Archaeological Excavations

Bobcat Machines at Archaeological Excavations

8 December 2022

Rome is a unique city in the world: it has buried under it an immense archaeological museum, the result of over 2800 years of history.
Bobcat Loaders Build Race Tracks Bobcat Loaders Build Race Tracks

Bobcat Loaders Build Race Tracks

1 December 2022

The 27th Kenny Festival, Europe's largest all-terrain event on two and four wheels, took place on the weekend of 10th and 11th September 2022 in Reygades in the South of Correze, France.
Radio Remote Control on Bobcat loaders - A New Way of Working in Spain Radio Remote Control on Bobcat loaders - A New Way of Working in Spain

Radio Remote Control on Bobcat loaders - A New Way of Working in Spain

23 November 2022

The main business area of ​​Vitrac Obra Pública is earthmoving, from small excavations to large earthworks. The company has the most modern machinery fleet on Mallorca, one of the Balearic Islands in Spain.
Bobcat Reveals Super Compact Telehandler and Company’s Most Powerful Compact Loaders TL25.50 Construction Telehandler

Bobcat Reveals Super Compact Telehandler and Company’s Most Powerful Compact Loaders

22 September 2022

Bobcat has expanded the company’s next generation R-Series range of products with the launch of the new Super Compact TL25.60 telehandler and the new S86 and T86 compact loaders.
Bobcat Launches New MT100 Mini Track Loader Bobcat Launches New MT100 Mini Track Loader

Bobcat Launches New MT100 Mini Track Loader

9 September 2022

Bobcat has launched the new MT100 mini track loader, removing the need for manual labour, and replacing the use of wheelbarrows, shovels and hand tools in many applications in construction, demolition, rental, landscaping, agriculture and other industries.
New Bobcat Excavator and Loader Demolish House in Just 2 Days New Bobcat Excavator and Loader Demolish House in Just 2 Days

New Bobcat Excavator and Loader Demolish House in Just 2 Days

1 July 2022

In the Czech Republic, refurbishment of family houses dating from the 1970s is often not worthwhile and a good number of these properties are demolished.
Bobcat To Show New Products and Technology at Bauma Bauma 2022

Bobcat To Show New Products and Technology at Bauma

27 June 2022

At Bauma 2022, Bobcat will be presenting several new products and technological developments for the first time at the exhibition.
